Ex Demo 2023 Giant Trance X E+ 1 Electric Mountain Bike - Cold Night - Medium

In Stock SAVE 38%
$5,879.95
RRP $9,499.95

More info.

Make 4 payments of $1,469.99 over 8 weeks and get it now!





Call NowSMS UsSMS Us

Need Help? Chat with the Casey Cycles team today!

  Click & Collect Information

  • A valid photo ID must be presented upon collection.
  • If paying by credit card, the card must be presented upon collection to be verified.
  • The order name must match the name on both the ID and credit card.
  • We will SMS you once your order is received and ready for collection.
Stock At Casey Cycles (In Store): 1

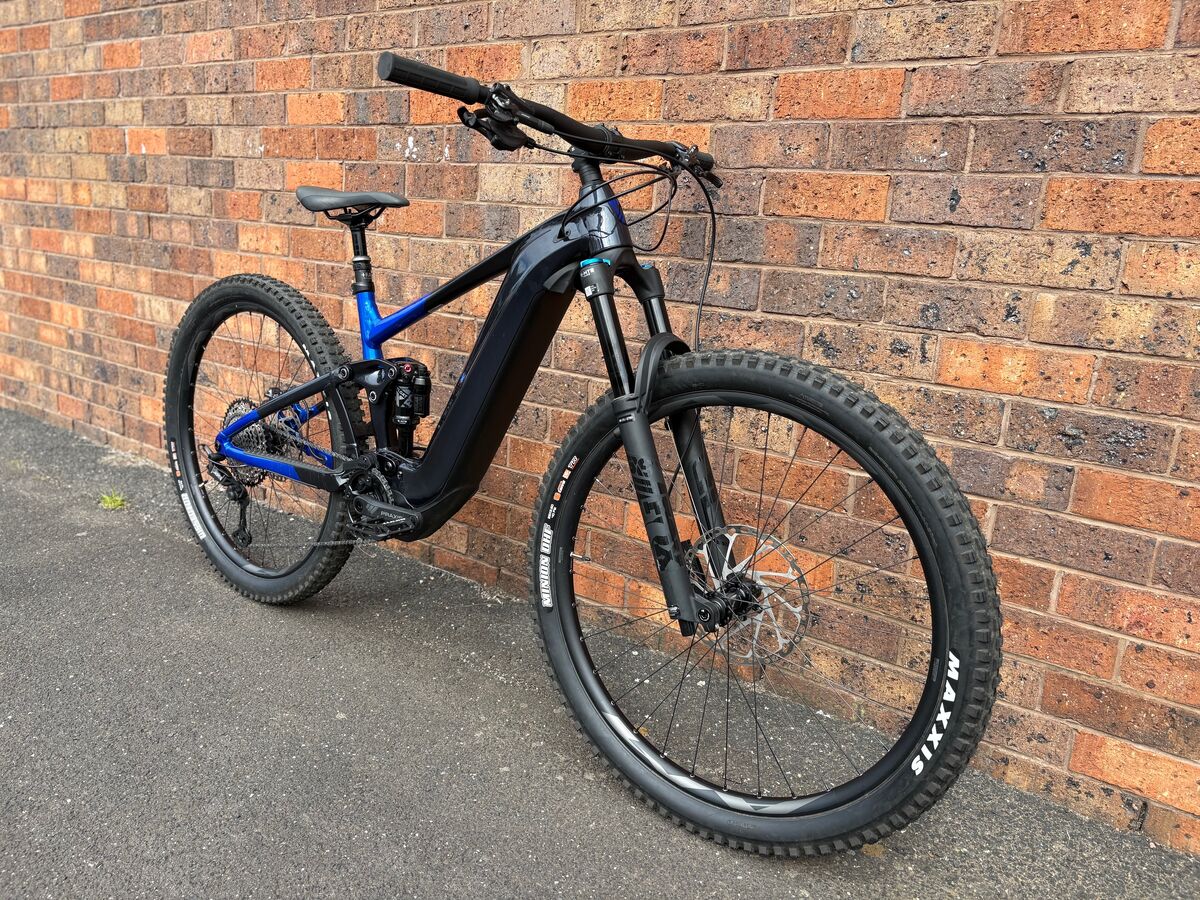

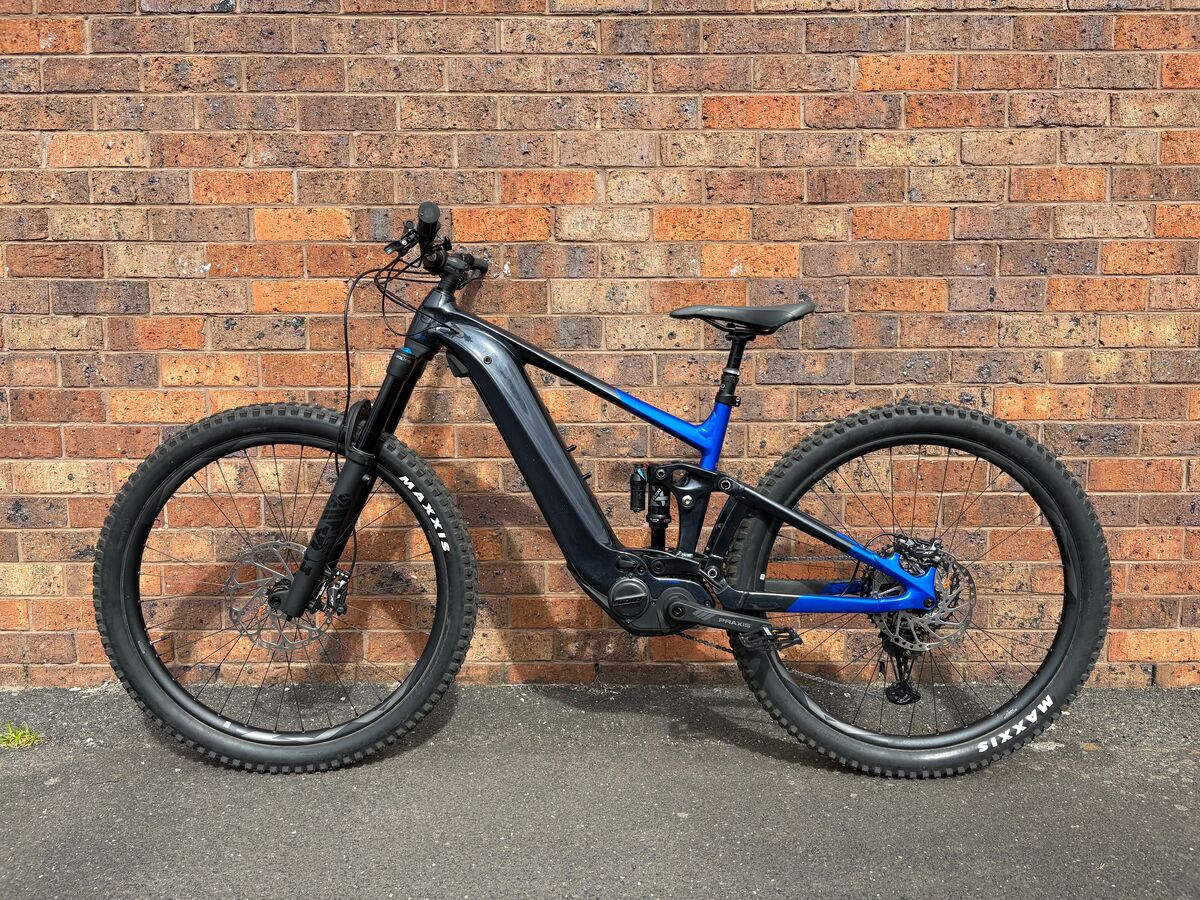

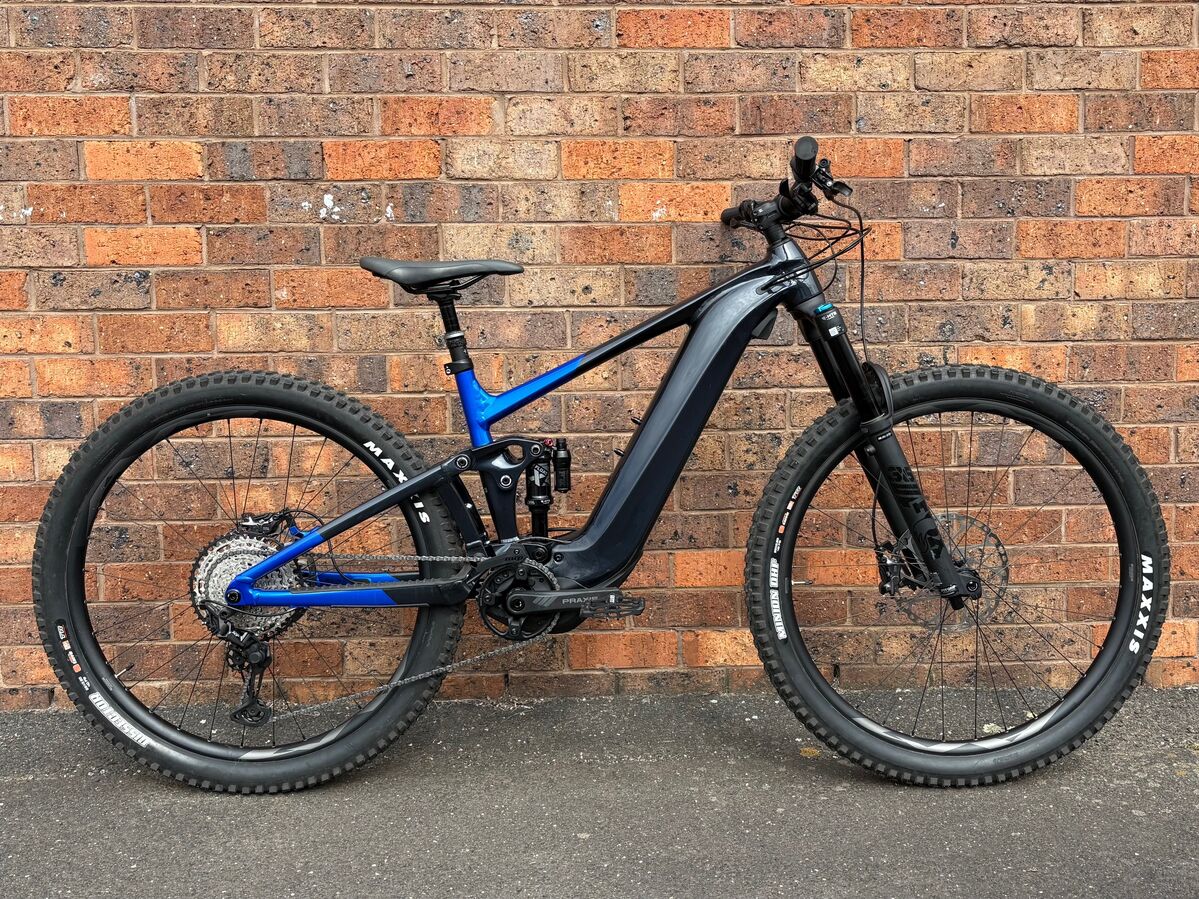

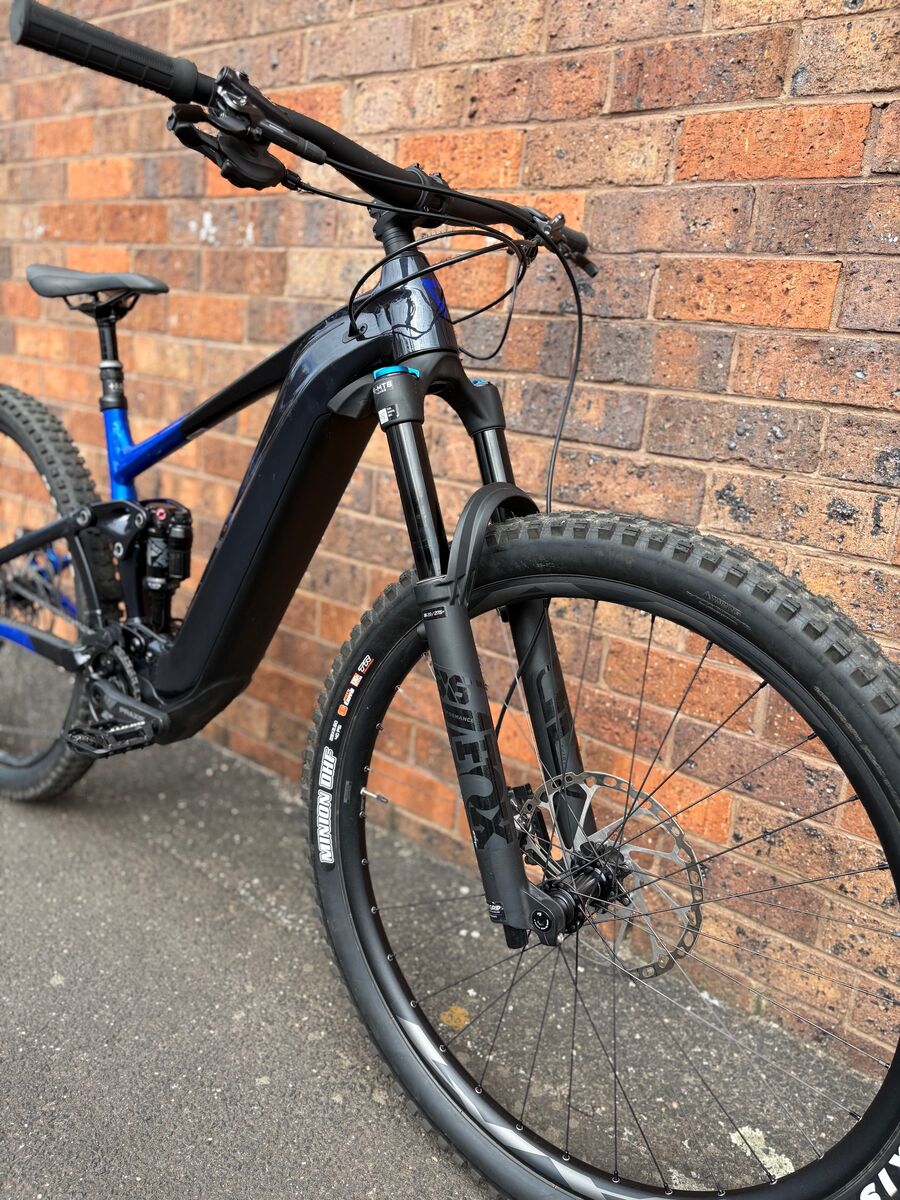

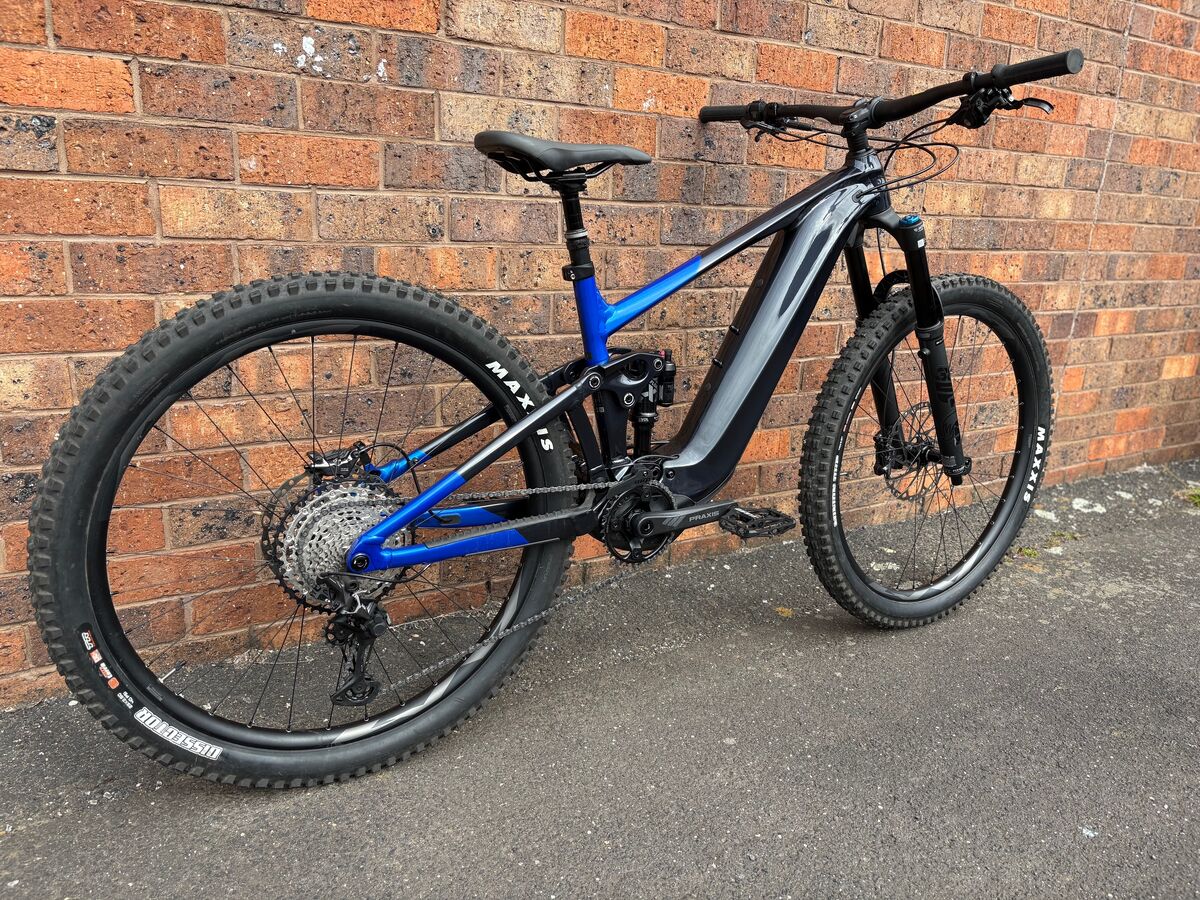

 Please Note: This bike is an ex Giant demo model and has approx 252km of use. Please view all photos and see "About This Bike" below for further info.

EX DEMO GIANT TRANCE X E+ 1 ELECTRIC BIKE - COLD NIGHT - MEDIUM

Take on any trail with confidence and power. The Trance X E+ 1 combines Giant’s advanced SyncDrive Pro motor with a long-lasting 800Wh EnergyPak battery, delivering smooth, natural assistance and extended range. With 29” wheels, Maestro suspension, and a lightweight ALUXX aluminum frame with Advanced Forged Composite linkage, this e-MTB is built for serious off-road performance, whether climbing steep terrain or descending technical trails.

ABOUT THIS BIKE

  • Ex Giant factory demo model.
  • Model Year: 2023.
  • Odometer: 252km (approx).
  • Frame Size: Medium (to suit riders approximately 171 to 182cm in height).

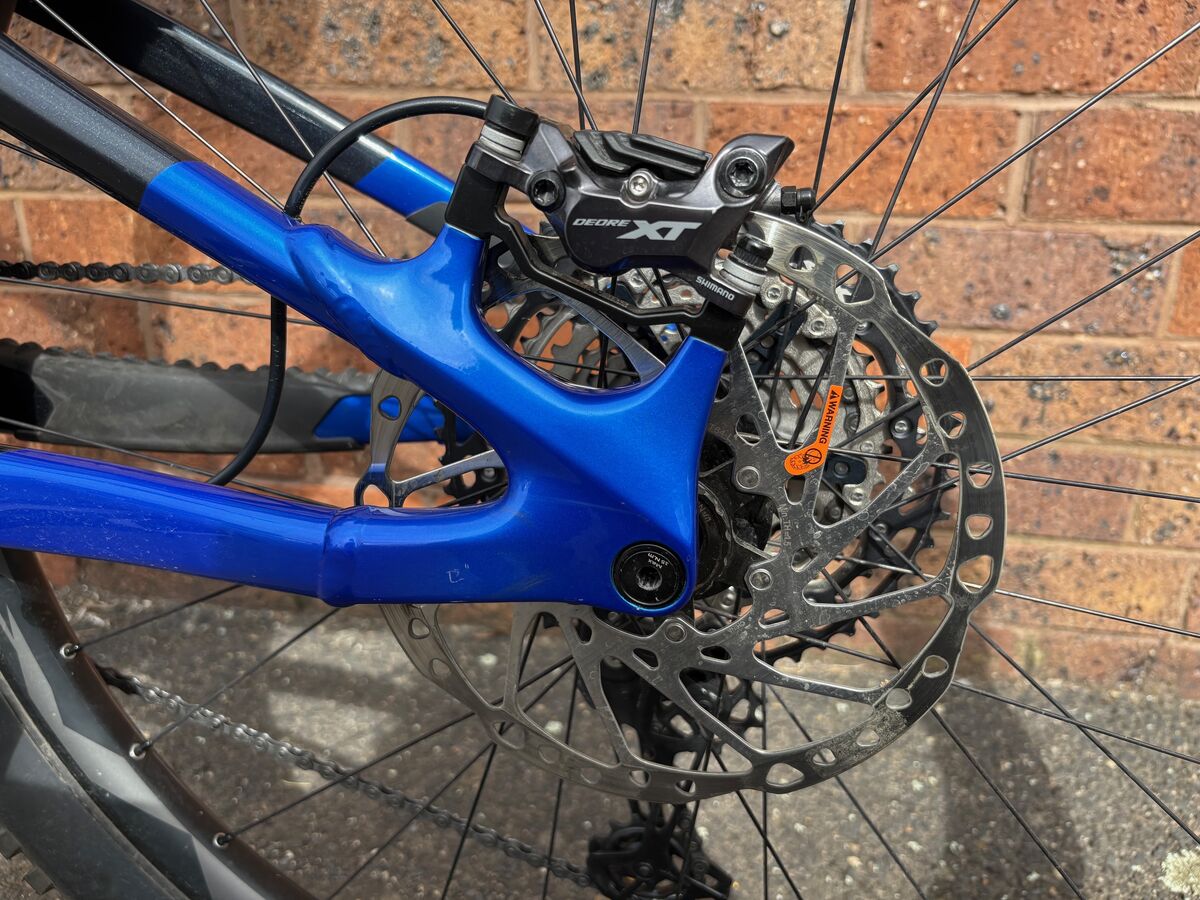

  • Bike Condition: Bike has approx 252km of use with wear to tyre's, chain, chainring, cassette, brake pads and rotors and pedals as well as minor scratches on frame and throughout bike (please view all photos for full description of the bikes condition or view bike in-store).
  • Bike sold as is with full Giant factory warranty.

KEY PERFORMANCE FACTORS

SMOOTH, POWERFUL SUPPORT

  • SyncDrive Pro motor delivers 85Nm of torque and tuneable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

TRAIL RIDING CONTROL

  • Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

ADAPTABLE TO THE TERRAIN

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

RANGE

How far can I expect to ride on a single battery charge?

  • The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
  • The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK 800 / SYNCDRIVE PRO2

Range Kilometres Miles
Extreme 70 Kilometres 43 Miles
Good 140 Kilometres 86 Miles
Ideal 250 Kilometres 155 Miles

SPEC

  • Motor: Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology.
  • Controller: RideControl Ergo 3, grip integrated.
  • Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible.
  • Battery: Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible.
  • Charger: Giant EnergyPak 6A smart charger, 60% in 2 hours and 15 minutes (approx).
  • Maximum Speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed.
  • Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile.
  • Size: Medium (to suit rider approx 171 to 182cm in height).
  • Colour: Cold Night.
  • Frame: ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible.
  • Fork: Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110.

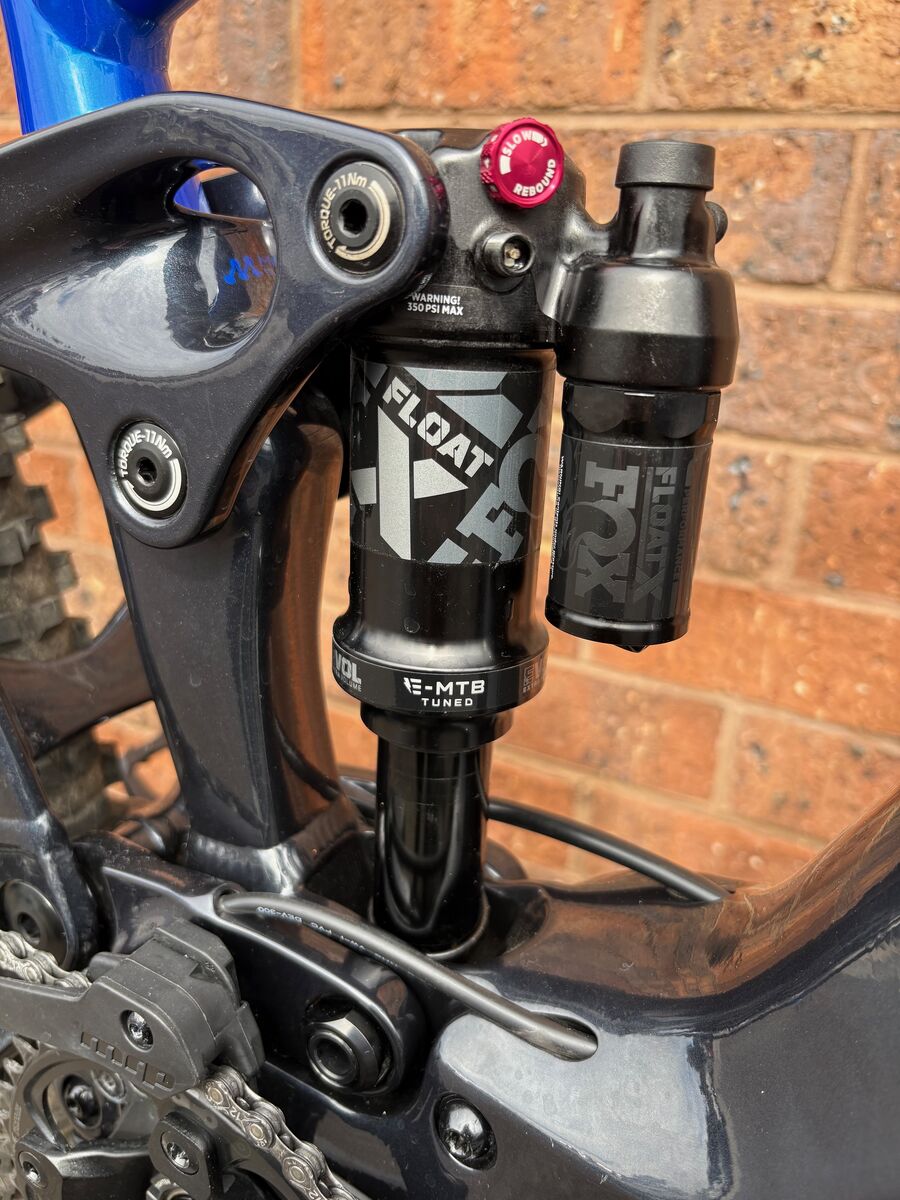

  • Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2-Pos Lever, custom tuned.
  • Handlebar: Giant Contact 35 Trail.
  • Grips: Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL).
  • Stem: Giant Contact SL 35.
  • Seatpost: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm, M: 140-170mm travel / 30.9 x 499mm, L: 170-200mm travel / 30.9 x 525mm, XL: 170-200mm travel / 30.9 x 525mm.
  • Saddle: Giant Romero E.
  • Pedals: Flat pedal.
  • Shifters: Shimano Deore XT.
  • Chain Guide: MRP HD2 co-moulded chain guide.

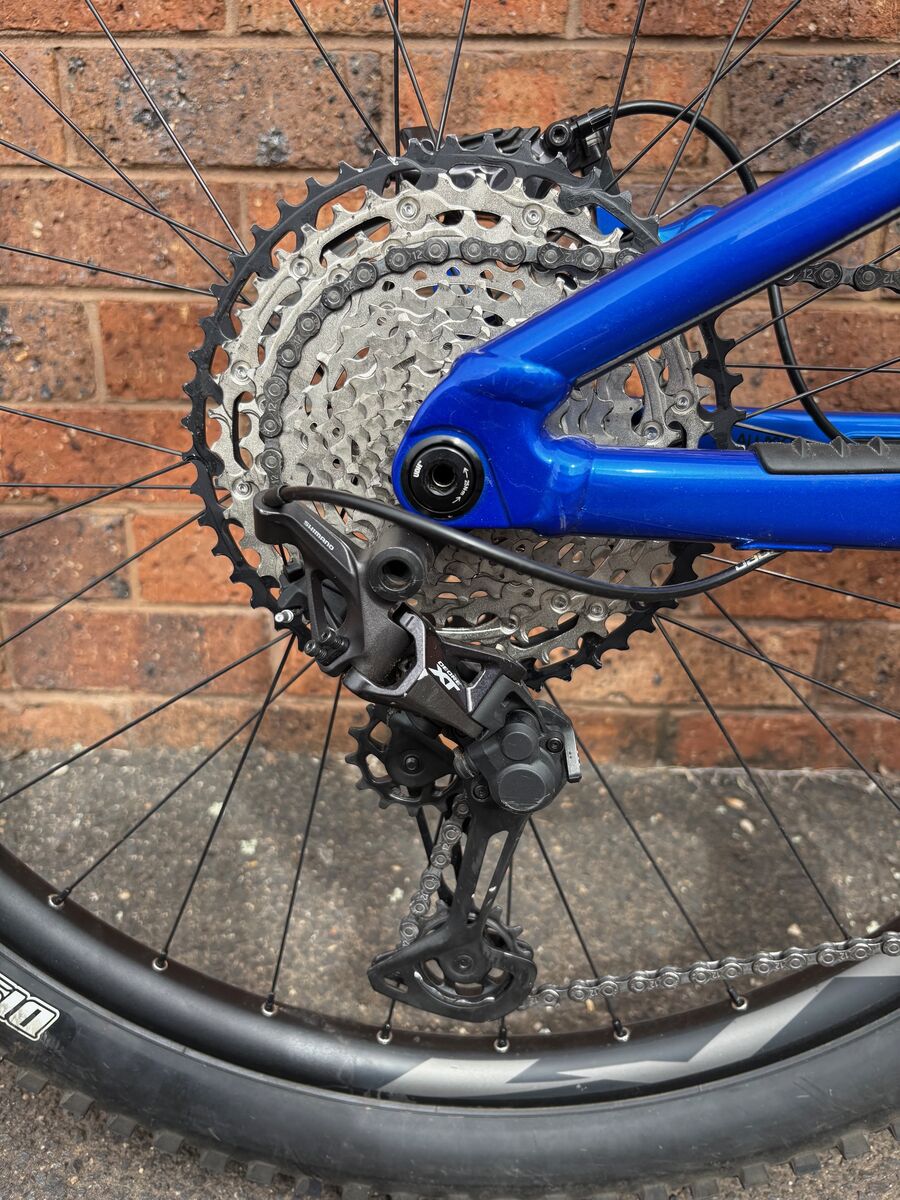

  • Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+.

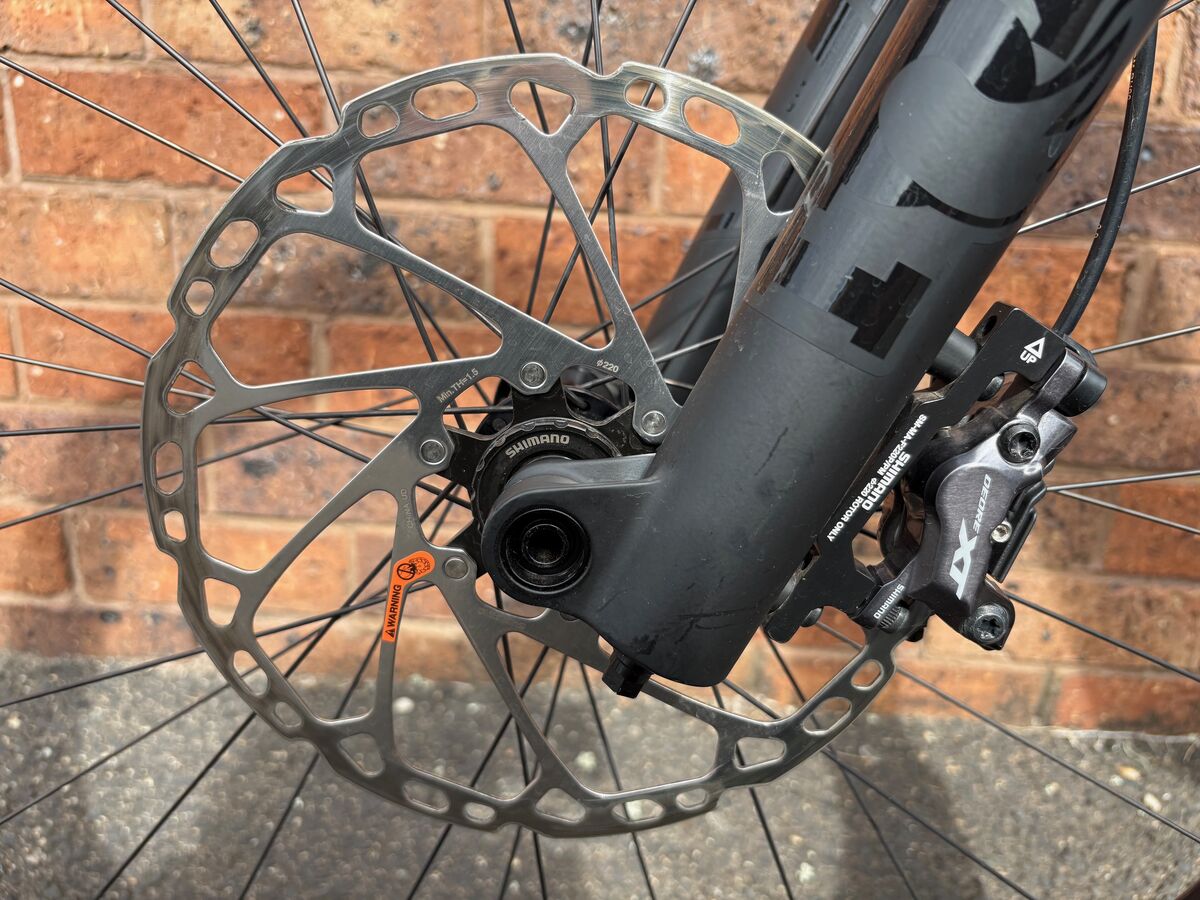

  • Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm [F], 203mm [R].
  • Brake Levers: Shimano Deore XT, I-spec EV.
  • Cassette: Shimano CS-M7100-12, 10-51T, 12-speed.
  • Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized.

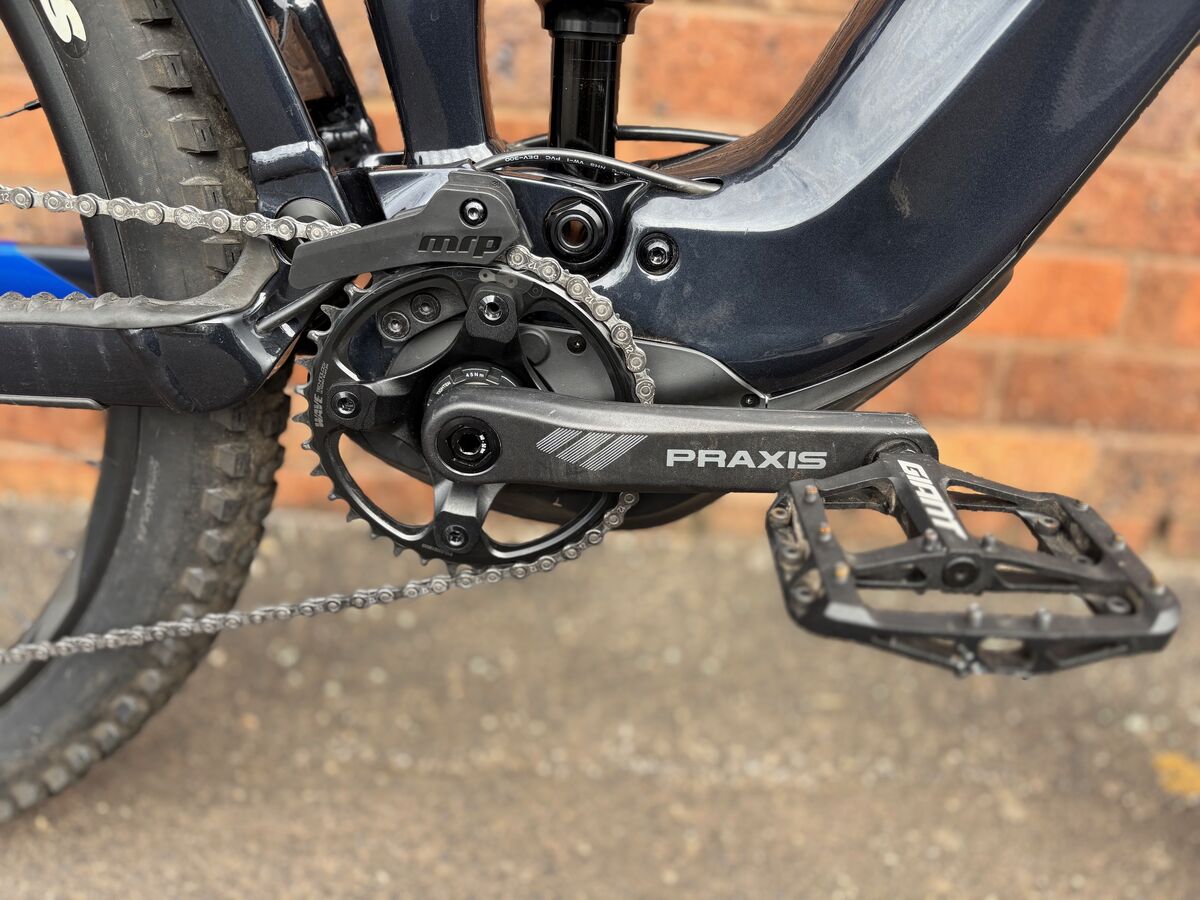

  • Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170).
  • Bottom Bracket: N/A.
  • Rims: Giant AM 29".
  • Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle.
  • Spokes: Sapim E-Lite [R] Race [F], e-bike optimized.
  • Tyres: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R].
  • Extras:Tubeless kit (liquid, valves, levers).
  • Lock: Torx 25 Battery Lock with built-in Torque limiter.

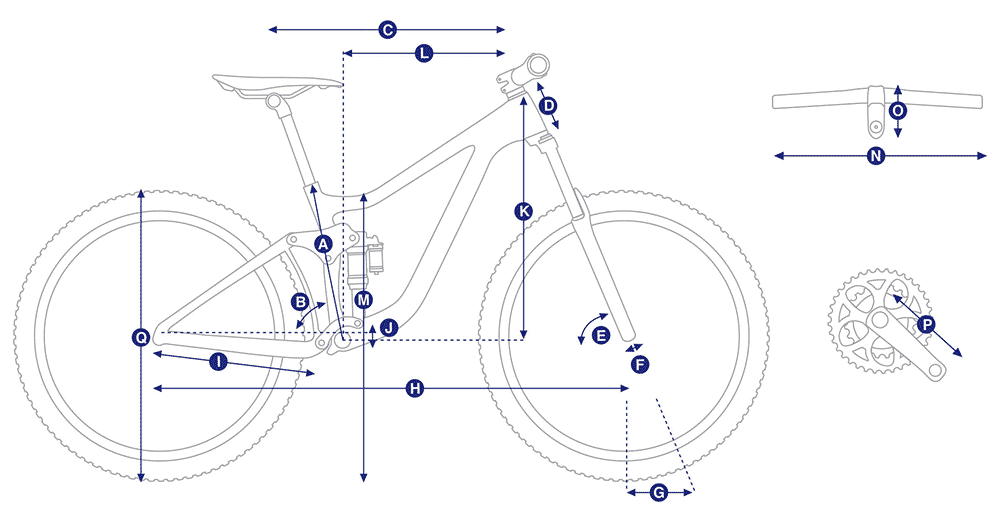

GEOMETRY

  S M L XL
  LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (inch) 15.7 16.7 17.7 18.7
B Seat Tube Angle 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7°
C Top Tube Length (inch) 22.7 | 22.6 24 | 23.8 25.1 | 25 26.3 | 26.2
D Head Tube Length (inch) 3.7 3.9 4.3 4.7
E Head Tube Angle 65.7° | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F Fork Rake (inch) 1.7 1.7 1.7 1.7
G Trail (inch) 4.6 | 4.8 4.6 | 4.8 4.6 | 4.8 4.6 | 4.8
H Wheelbase (inch) 47.4 | 47.5 48.8 | 48.7 49.9 | 50 51.2 | 51.2
I Chain Stay Length (inch) 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6 18.6 | 18.6
J Bottom Bracket Drop (inch) 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8 1.2 | 0.8
K Stack (inch) 23.9 | 23.7 24.1 | 23.8 24.4 | 24.2 24.8 | 24.6
L Reach (inch) 17.3 | 17.6 18 | 18.2 19 | 19.3 20.1 | 20.4
M Stand Over Height (inch) 30.8 | 31.1 30.5 | 30.9 30 | 30.3 30.5 | 30.8
O Stem Length (mm) 40 50 50 60
P Crank Length (mm) 160 165 165 170
Q Wheel Size 29" 29" 29" 29"



SKU 2313309105D
Brand Giant Bicycles
