Apollo Aspire 20 MTB - Matte Red/Black - Small

In Stock SAVE 4%
$699.95
RRP $729.95

More info.

Make 4 payments of $174.99 over 8 weeks and get it now!





Call NowSMS UsSMS Us

Need Help? Chat with the Casey Cycles team today!

  Click & Collect Information

  • A valid photo ID must be presented upon collection.
  • If paying by credit card, the card must be presented upon collection to be verified.
  • The order name must match the name on both the ID and credit card.
  • We will SMS you once your order is received and ready for collection.

REAL TIME STOCK LEVELS

Number of Apollo Aspire 20 MTB - Matte Red/Black - Small available in-store today at Casey Cycles: 1

 All bikes are sold fully assembled, ready to ride and are available for in store pick up or local home delivery only.

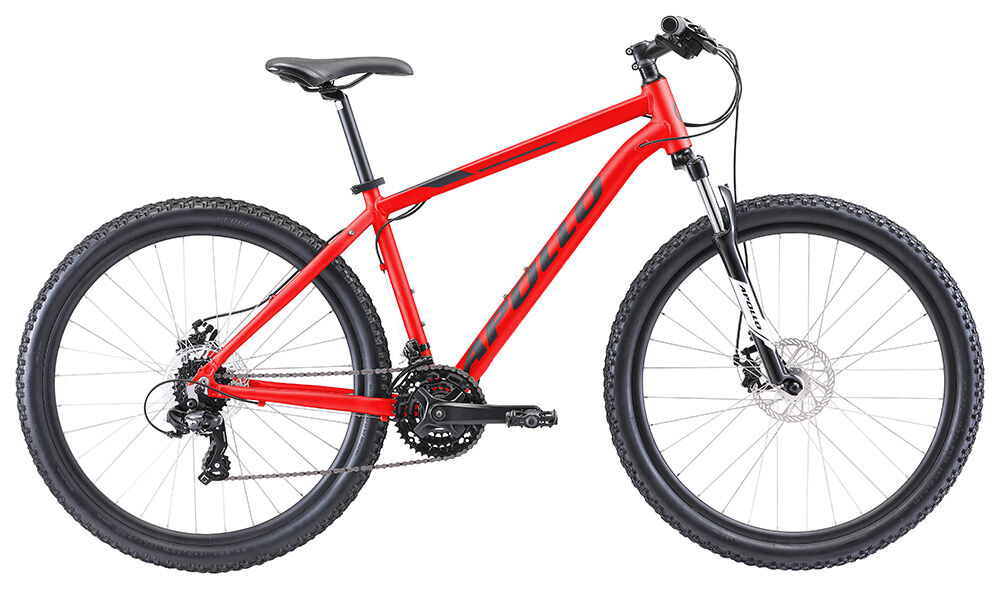

APOLLO ASPIRE 20 MOUNTAIN BIKE - MATTE RED/BLACK

The Apollo Aspire 20 is your new recereational mountain bike, ideal for your daily commute, weekend family rides, rail trails and light trail riding, the Aspire 20 features a lightweight aluminium frame, short travel front suspension fork, a 21 speed Shimano gear system and powerful disc brakes front and rear for safe, reliable stopping power. Buy your new Apollo Aspire 20 mountain bike in Melbourne today with Casey Cycles, shop online or visit our local bike shop in the south east Melbourne suburb of Cranbourne to speak with a member of our friendly team and check out our range of adults recreational mountain bikes in person.

SPEC

  • Frame: 27.5" lightweight 6061 alloy disc specific frame with integrated head tube, internal cable routing, snake stays and replaceable derailleur hanger.
  • Fork: 27.5, 80mm travel, preload.
  • Headset: Semi integrated A-head 1-1/8".
  • Handlebars: Low riser, W: 640mm, R: 20mm, bore: 31.8mm, sweep: 6°.
  • Grips:Kraton grip.
  • Headstem: Alloy A-head 25.4mm Ext: XS/S=75mm, M/L=90mm, XL=105mm.
  • Crankset: Alloy MTB crank 42 x 32 x 22T L=170mm.
  • Bottom Bracket: Cartridge bottom bracket.
  • Pedals: Low profile high impact resin.
  • Front Derailleur: Shimano TZ-500.
  • Rear Derailleur: Shimano TY-300.
  • Shifters: Shimano EF-41 EZ FIRE 21 speed.
  • Cassette: Shimano HG-20 7 speed cassette 12-28T.
  • Chain: KMC Z-7.
  • Brakes: JAK-8 mechanical disc brakes with 160mm rotors.
  • Wheels: 27.5" alloy 32 hole A/V double wall disc specific rims, alloy disc hubs and stainless spokes.
  • Tyres: Kenda 27.5 x 2.1" wire bead.
  • Saddle: Apollo MTB sport saddle.
  • Seatpost/Clamp: Alloy micro adjust 27.2mm, L:350mm with QR clamp.
  • Colour: Matte Red/Black.
  • Size: Small.

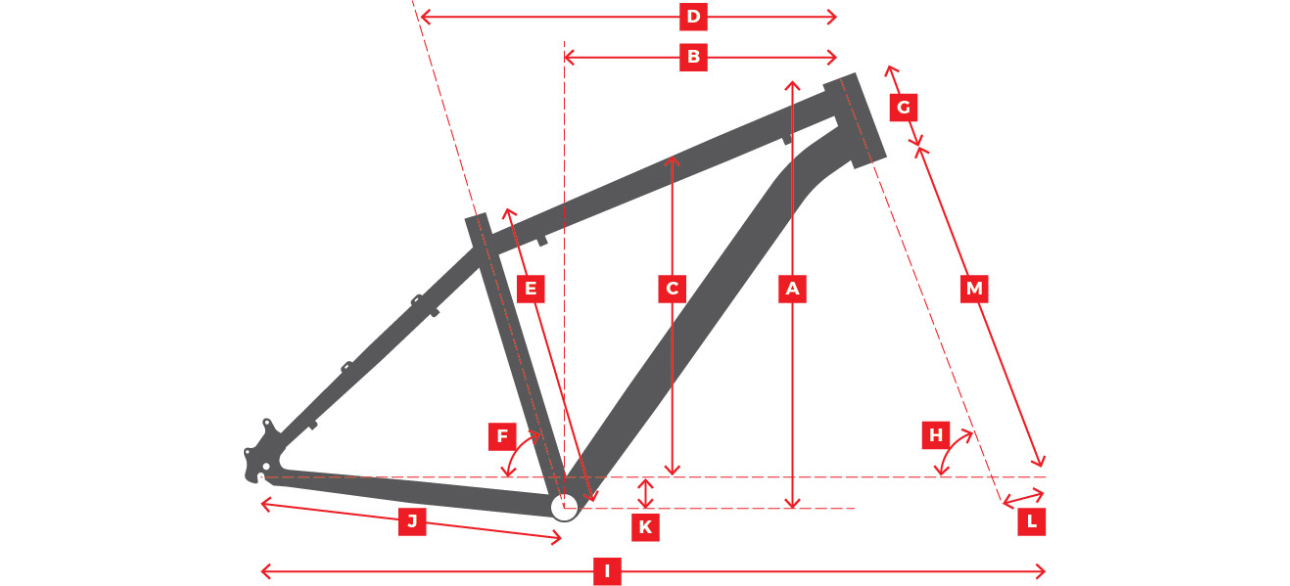

SIZING/GEOMETRY

  XS S M L XL
Frame Size 14" 16" 17.5" 19" 21"
A – Stack (mm) 574 584 595 607 618
B – Reach (mm) 375 382 403 419 435
C – Stand Over Height (mm) 406 435 454 478 505
D – Effective Top Tube Length (mm) 540 555 585 605 630
E – Seat Tube (Centre to Top) (mm) 355 410 440 480 530
F – Seat Angle 74° 73.5° 73° 73° 72.5°
G – Head Tube Length (mm) 110 120 130 140 150
H – Head Angle  69° 69° 69.5° 70° 70.5°
I – Wheel Base(mm) 1062 1073 1092 1108 1121
J – Chain Stay Length (mm) 440 440 440 440 440
K – BB Drop (mm) 45 45 45 45 45
L – Fork Rake (mm) 42 42 42 42 42
M – Axle to Crown (mm) 475 475 475 475 475
Rear Dropout Spacing (mm) 135 135 135 135 135
Approx. Rider Height 147 - 160cm
4'10" - 5'3"
155 - 165cm
5'1" - 5'5"
165 - 173cm
5'5" - 5'8"
173 - 180cm
5'8" - 5'11"
180 - 190cm
5'11" - 6'3"



  • Sizing to be used as a reference only. Please visit us in-store to determine the correct sizing.
  • Please note that the specification of this bike may be impacted by running substitution changes.
  • Recommended Retail Prices are subject to change without notice and may vary depending on freighting and assembly costs.
  • Due to the terms of the Apollo Bicycles dealer agreement all Apollo bikes are sold fully assembled and available for in-store pick up or local home delivery only and cannot be shipped.
SKU ASPIRE20
Brand Apollo
