Apollo Trail Trail D 20 MTB - Gloss Purple/Black - Large

In Stock SAVE 46%
$2,499.95
RRP $4,599.95

More info.

Make 4 payments of $624.99 over 8 weeks and get it now!





Call NowSMS UsSMS Us

Need Help? Chat with the Casey Cycles team today!

  Click & Collect Information

  • A valid photo ID must be presented upon collection.
  • If paying by credit card, the card must be presented upon collection to be verified.
  • The order name must match the name on both the ID and credit card.
  • We will SMS you once your order is received and ready for collection.

REAL TIME STOCK LEVELS

Number of Apollo Trail Trail D 20 MTB - Gloss Purple/Black - Large available in-store today at Casey Cycles: 1

 All bikes are sold fully assembled, ready to ride and are available for in-store pick up only.

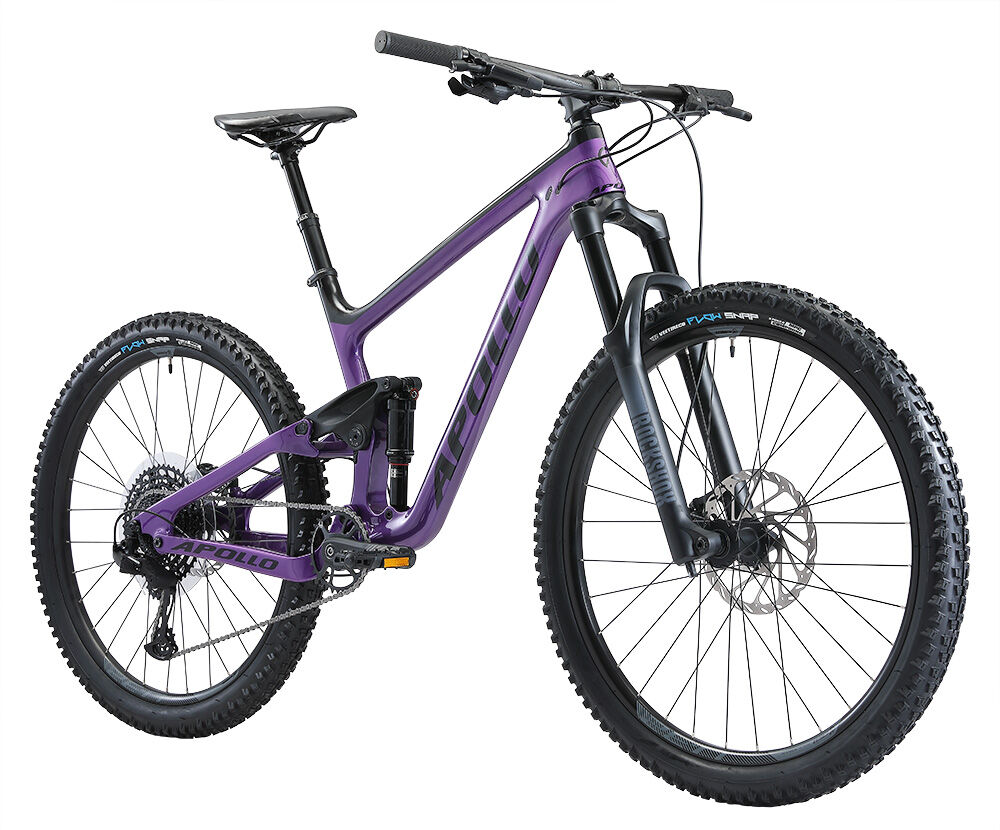

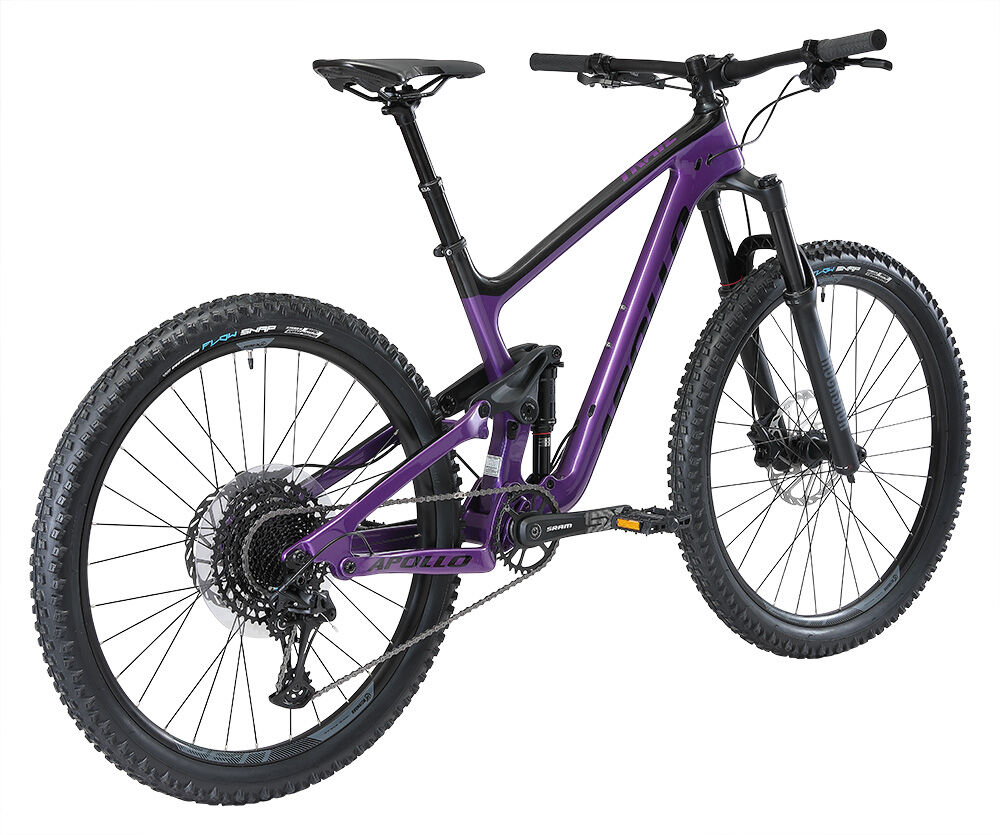

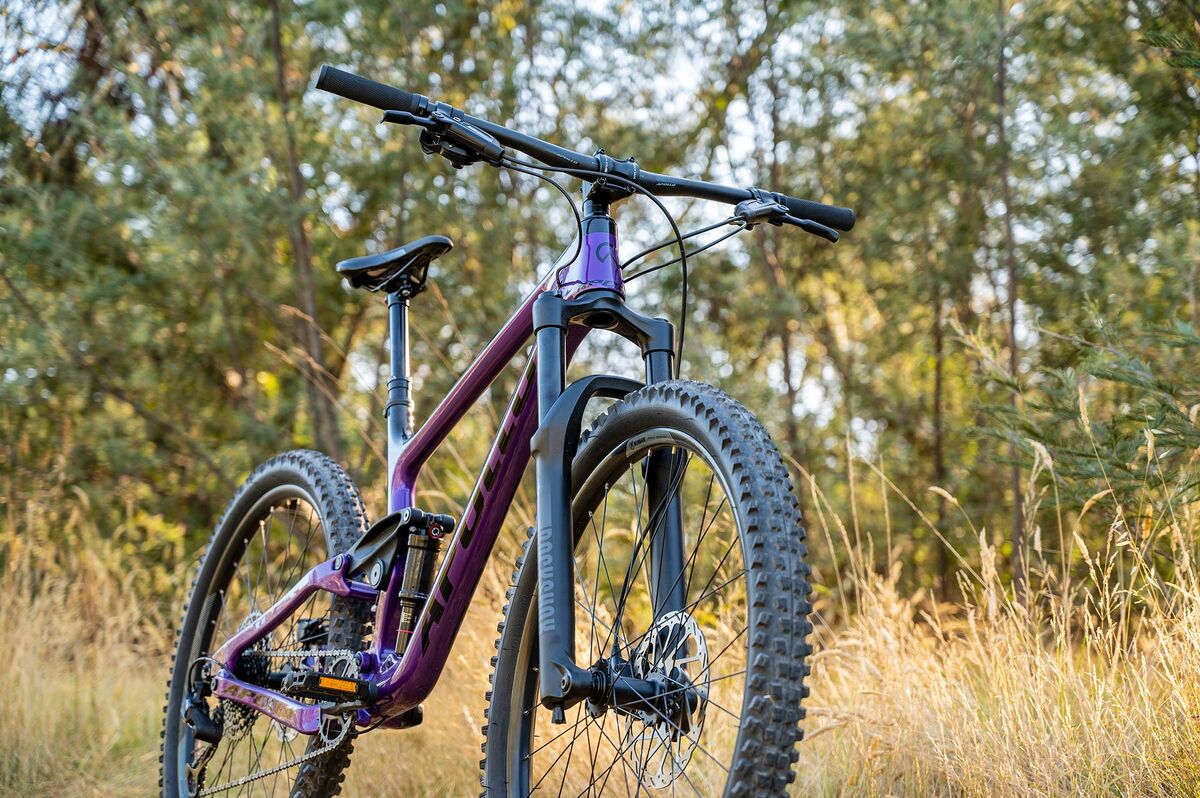

APOLLO TRAIL D 20 DUAL SUSPENSION MTB - GLOSS PURPLE/BLACK

The Apollo Trail D 20 is your ticket to effortless trail riding, built to thrive on flowing singletrack and all-day adventures. Built around a lightweight carbon frame with 140mm of front travel paired to 130mm at the rear, the Trail D 20 smooths out rough terrain while keeping your ride responsive and fun. Equipped with a 12 speed SRAM Eagle drivetrain, climbing becomes a breeze, letting you tackle steep ascents without breaking rhythm. When it’s time to descend, SRAM Level hydraulic disc brakes deliver precise control and confident stopping power, so you can carve corners with ease. Wrapped in 27.5" x 2.6" Veetire Flow Snap tyres, the Trail D 20 grips the trail with authority, giving you the traction you need to push harder and ride further. The Apollo Trail D 20 cross country mountain bike is available to buy now in Melbourne at Casey Cycles Cranbourne, shop online or visit our friendly team in store at our south east Melbourne local bike shop to view our range of dual suspension bikes in person.

SPEC

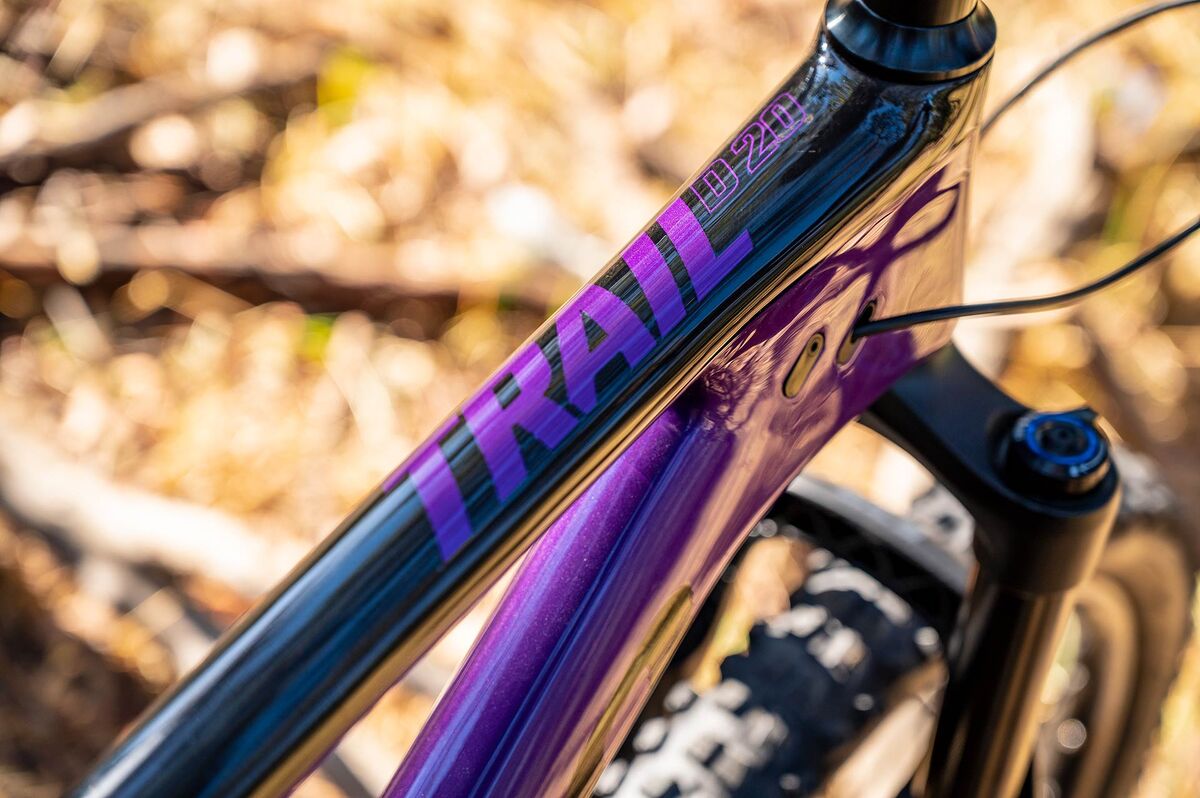

  • Frame: 27.5" Plus carbon dual suspension frame, UD carbon, 130mm (5") travel. 1-1/8 - 1-1/2" head tube, 12x148mm Boost.
  • Fork: Rockshox 35 Gold RL. Tapered alloy steerer, 140mm travel, Boost, with Maxle Stealth.
  • Rear Shock: Rockshox Monarch R.
  • Headset:  A-head semi integrated, for tapered 1-1/8 - 1-1/2" head tube, cartridge bearings.
  • Handlebars: Apollo alloy riser bar 31.8mm W: 740mm, sweep: 5°.
  • Grips: Lock-on grips, Kraton rubber.
  • Headstem: Apollo 3D forged stem, 31.8mm 4 bolt stem, Ext: S/M/L=45mm.
  • Crankset: SRAM SX Eagle 32T L: S=170mm, M/L=175mm.
  • Bottom Bracket: SRAM Powerspline.
  • Pedals: Low profile high impact resin.
  • Rear Derailleur: SRAM SX Eagle.
  • Shift Lever: SRAM SX Eagle trigger 12 speed.
  • Cassette: SRAM PG-1210, 11-50T.
  • Chain: SRAM Eagle 12 speed.
  • Brakes: SRAM Level hydraulic disc brakes, F:180mm / R:160mm rotors.
  • Wheels: 27.5" Weinmann U-32 alloy 32 hole F/V double wall disc specific rims, 12 x 148mm rear hub and 15mmx110mm Thru Axle front hub.
  • Tyres: Veetire Flow Snap. 27.5" x 2.6", wire bead.
  • Saddle: Apollo MTB sport saddle.

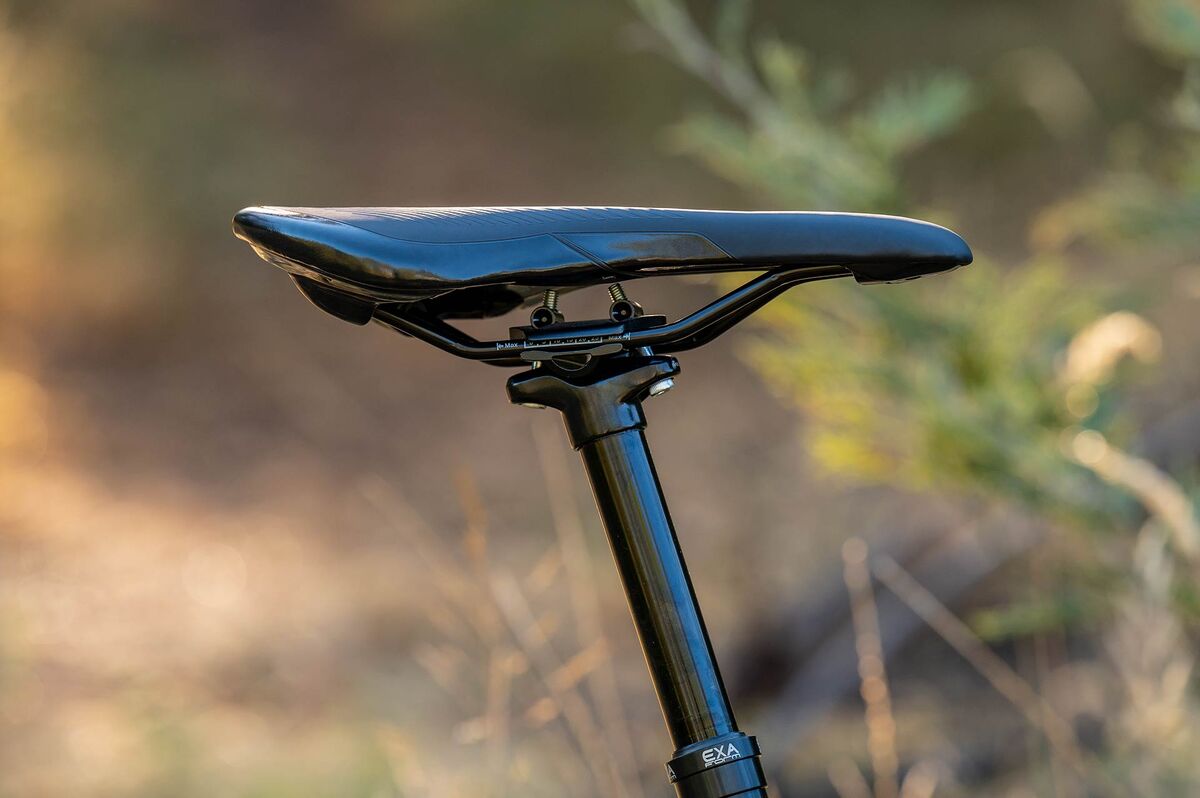

  • Seatpost/Clamp: KS E30i 125mm travel dropper post 31.6mm.
  • Colour: Gloss Purple/Black.
  • Size: Medium & Large.

GEOMETRY

  M L
Frame Size 17" 19.5"
A – Stack (mm) 613 623
B – Reach (mm) 440 456
C – Stand Over Height (mm) n/a n/a
D – Effective Top Tube Length (mm) 616 635
E – Seat Tube - Centre to Top (mm) 430 489
F – Seat Angle 74° 74°
G – Head Tube Length (mm) 105 115
H – Head Angle 68.5° 68.5°
I – Wheel Base (mm) 1170 1189
J – Chain Stay Length (mm) 443 443
K – BB Drop (mm) 24 24
L – Fork Rake (mm) 51 51
M – Axle to Crown (mm) 551 551
Rear Dropout Spacing (mm) 148 148
Approx. Rider Height 160 - 168cm
5'3" - 5'6"
170 - 178cm
5'7" - 5'10"



  • Sizing to be used as a reference only. Please visit us in-store to determine the correct sizing.
  • Please note that the specification of this bike may be impacted by running substitution changes.
  • Recommended Retail and Sale Pricing are subject to change without notice and may vary depending on freighting, assembly and other associated costs.
  • All Apollo bicycles are sold fully assembled and available for in-store pick up only and cannot be shipped.
